VD1806-Xhorse VVDI Key Tool Max Pro Remote Programmer

Xhorse VVDI Key Tool Max Pro Multi-Language Remote Programmer

Xhorse VVDI KEY TOOL MAX PRO is a professional all-in-one smart device with multi-function, Bluetooth and WIFI communication interface, which is convenient for connecting and controlling Xhorse key cutting machines. It supports various OBD functions such as vehicle diagnosis, IMMO program, throttle program, TPMS, and maintenance light reset.

VVDI Key Tool Max Pro Highlights:
1.Combines functions of Key Tool Max+Mini OBD Tool
The remote/transponder function is the same as the previous
Support Generate transponder and remote.etc
2.Add New BMW CAS3 and Toyota Models
BMW CAS3 Key Programming (Comming soon)
Partial Toyota Models Key Programming (Comming soon)
3.Multi-Language: English, German, Spanish, Persian, French, Hebrew, Hindi, Indonesian, Italian, Korean, Polish, Portuguese, Russian, Thai, Turkish, Ukrainian, Vietnamese
(App language has no limitation. Free to switch now, database language is English)
4.Free to get ID48 96bit function.
How to get free ID48 96bit function? Please use VVDI Max to generate new Xhorse remote key 10pcs, after collect points,2 hours later, server will open ID48 96bit function free.
5.Built-in CAN_FD Module
6.Supports Toyota H all keys lost with 8A AKL adapter
7.Control Xhorse Condor/Dolphin key cutting machines

NEW - BMW CAS3Toyota Models Programming
To make it a more powerful and competitive tool, KEY TOOL MAX PRO is projected to add programming feature of BMW CAS3 and some Toyota models soon. Like always, Xhorse offers continuous upgrades on this very new machine and more can be expected!

Xhorse VVDI Key Tool Max Pro
The brand new Key Tool Max Pro from Xhorse comes with all the features of the existing Key Tool Max but with much, much more!
It combines functions of Key Tool Max + Mini OBD Tool

Designed with locksmiths in mind this device has all the staple featues of Xhorse's excellent VVDI Key Tool range including transponder cloning & generation, RF testing and remote renewal. It also opens up the world of the Xhorse Super Chip and Xhorse Universal Remotes; increasing your vehicle coverage immensely.

This new device comes complete with an OBD cable allowing programming directly through the Key Tool Max Pro rather than needing a separate programmer. It also means the device receives power over OBD so you don't need to worry about losing charge on the job!

Xhorse VVDI Key Tool Max Pro Functions:
Immobilizer programming
Service reset
Generate remote
Clone remote
Generate transponder
Copy transponder
Generate special function
Unlock/Renew remote
Identity/Copy ID card
Generate/Copy garage remote
Detect frequency
Detect remote battery/voltage

Newly Added OBD Module
KEY TOOL MAX and MINI OBD TOOL used to be a great combination, enabling users to finish various works via wireless connection. Now, MAX PRO comes with an OBD cable which could connect it to vehicle OBDⅡ port, which means you don't need to purchase MINI OBD TOOL for immo programming and other functions. Meanwhile, wire connection usually can be highly secure and reliable with low risk.

Built-in CAN_FD Module, Expanded Function:

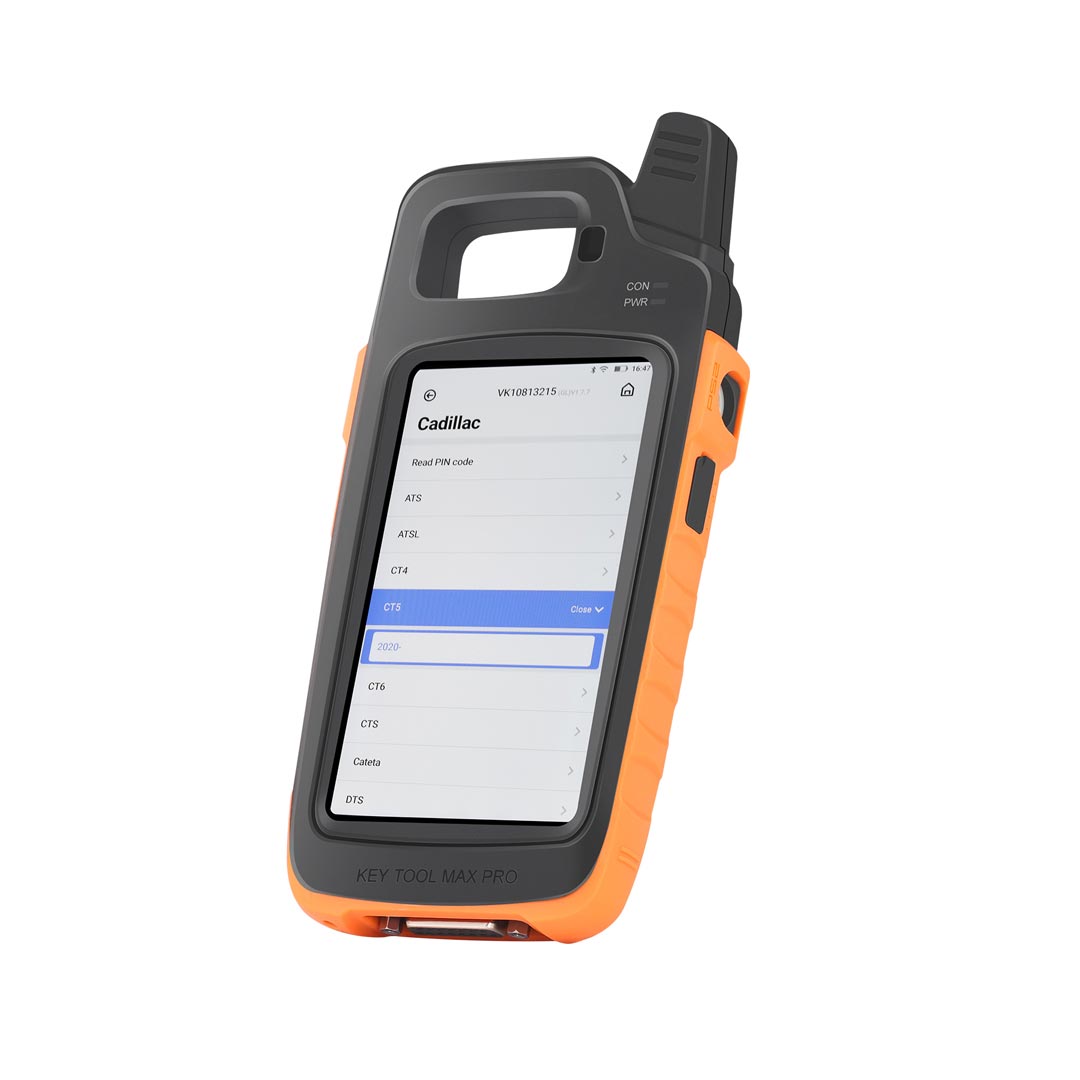

Concerning immo programming, MAX PRO is designed with a CAN_FD module, making it possible to complete immo programming for various CAN_FD models such as Cadillac CT4/CT5, Buick GL8, Encore, etc. Of particular note, Xhorse offers continuous upgrades for free and car models supported keep increasing for your convenience.

Read Voltage and Leakage Current:
This function is only used for leakage detection and voltage detection of remote, please do not use it for detection of other products.
Leakage detection: it can detect the current when the remote is leaking, and support current range is 1 microamp~35 milliampere(Do not insert battery into remote)
Voltage detection: it can detect the voltage of the remote battery,and support voltage range is 0V-36V

Battery Test Module

Combining the needs of automotive locksmiths with our innovations, KEY TOOL MAX PRO features a new battery test module. By simply connecting to the leakage detection cable, users can test whether a remote battery is having electric leakage (range: 1μA~35μA) and detect the voltage of a remote battery (range: 0V~36V).

Xhorse VVDI Key Tool Max Pro VS Key Tool Max

Item	Xhorse VVDI Tool Max Pro	Xhorse VVDI Tool Max
Appearance
CPU	Quad core CPU	Quad core CPU
RAM	1G+8G	1G+8G
OBD module	Yes,Built-in	External Mini OBD Tool
CANFD module	Yes	No
Battery Voltage Test	Yes	No
Immobilizer programming	Yes,Built-in	External Mini OBD Tool
Cadillac CT4/CT5 CAN FD	Yes	No
Buick GL8/ ENCLAVE CAN FD	Yes	No
Chevrolet Cavalier/Trax CAN FD	Yes	No
Service Reset	Yes,Built-in	External Mini OBD Tool
Generate remote (remote, smart card, Toyota XM remote, garage remote)	Yes	Yes
Copy remote	Yes	Yes
Identify/copy chip	Yes	Yes
Generate chip	Yes	Yes
File make key (Immo data tool)	Yes	Yes
Other special functions	Yes	Yes

Xhorse VVDI KEY TOOL MAX PRO Parameter
Battery: 3375mAh
Standby: >5 Days
Inoput: 1.5A
Light: >400nits
Screen Resolution: 1280*720P
Camera: 800W
WiFi& Bluetooth: 802.11a/g/g/n/ac & 4.2 BLE

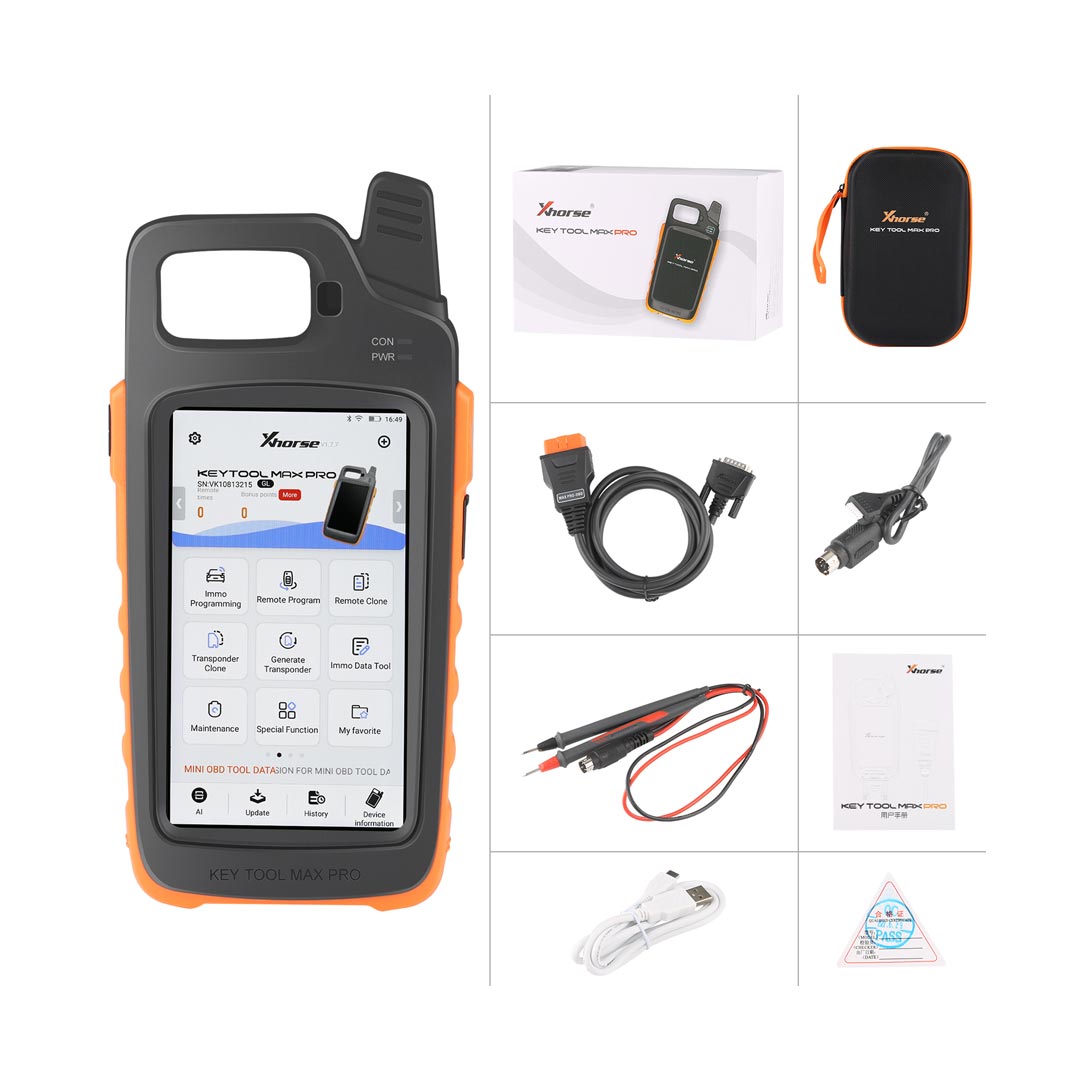

Xhorse VVDI KEY TOOL MAX PRO Package List:
1pc x KEY TOOL MAX PRO deivce
1pc x OBD to DB15 cable with light
1pc x Remote programming cable
1pc x Leakage detection cable
1pc x USB cable
1pc x User Manual
