VD14292

AUDI C6 Q7 A6 Steer Column Module J518 ELV Module Emulator with VVDI Dedicated Programming Cable

Item Code: VD14292

Product Categories: Emulators

  • Available in Stock
Product Information
  • $110.00
  • More than 10 available

  • Add to Wishlist
  • Manufacturer: Aftermarket
  • Status: New

Specs:

Manufacturer: Aftermarket
Condition: New

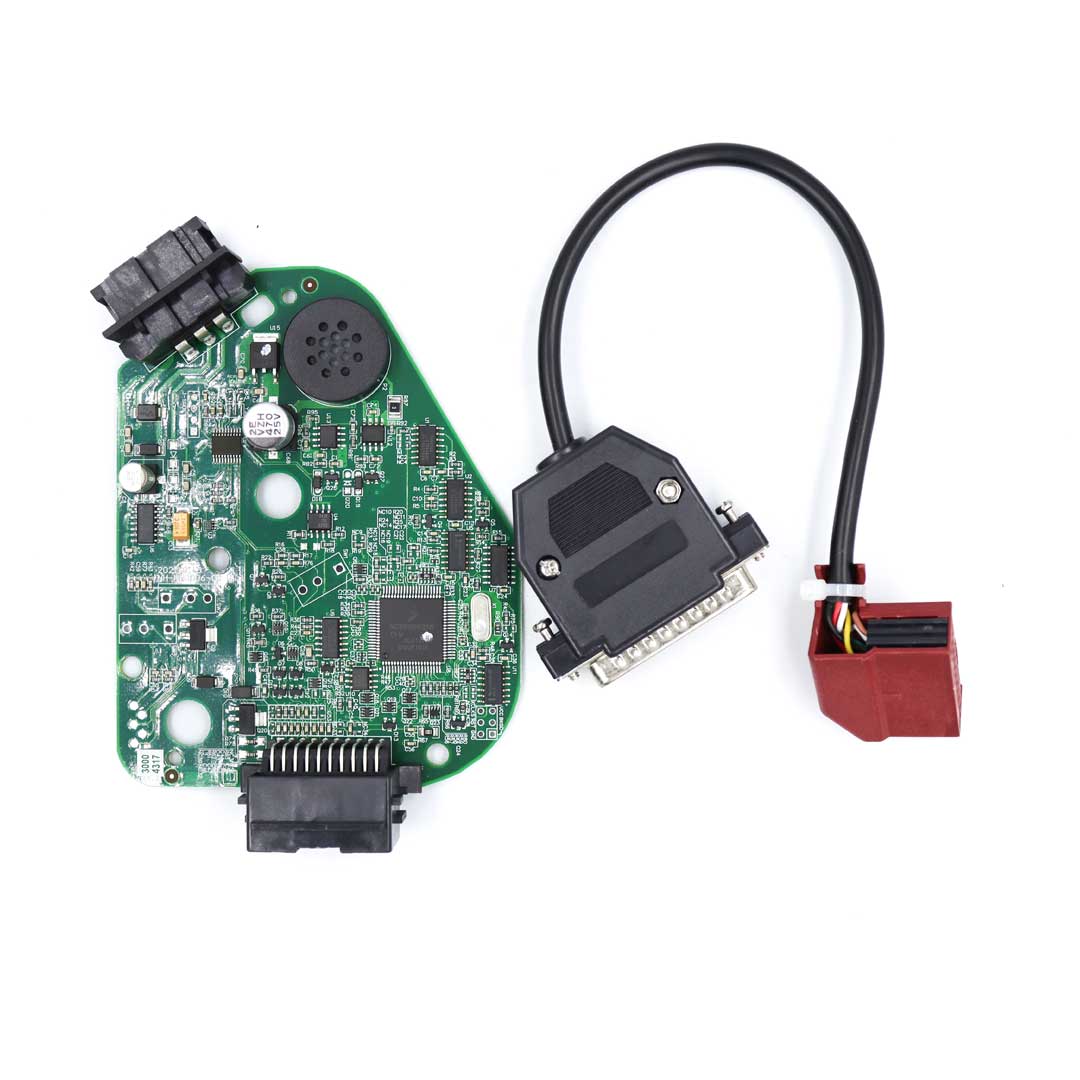

AUDI C6 Q7 A6 Steering Module J518 ELV Emulator with VVDI Dedicated Programming Cable

Highlight for Audi Steering Module J518 ELV Emulator:
1. Universal solution, three types MCU all can replaced by this emulator.
(replace MCU Mask: 1L59W, 3L40K, 0L01Y);


2. Stable and durable, No Vulnerable components such as relays, microswitch and motors on it.

3. Easy for replacing, write in the dump form original J518 Module with the WVDI PROG dedicated line directly, No need solder wire.
Note:

The emulator without lock or on lock function, if need the same function as the original J518 Module, please buy the J518 Replacement

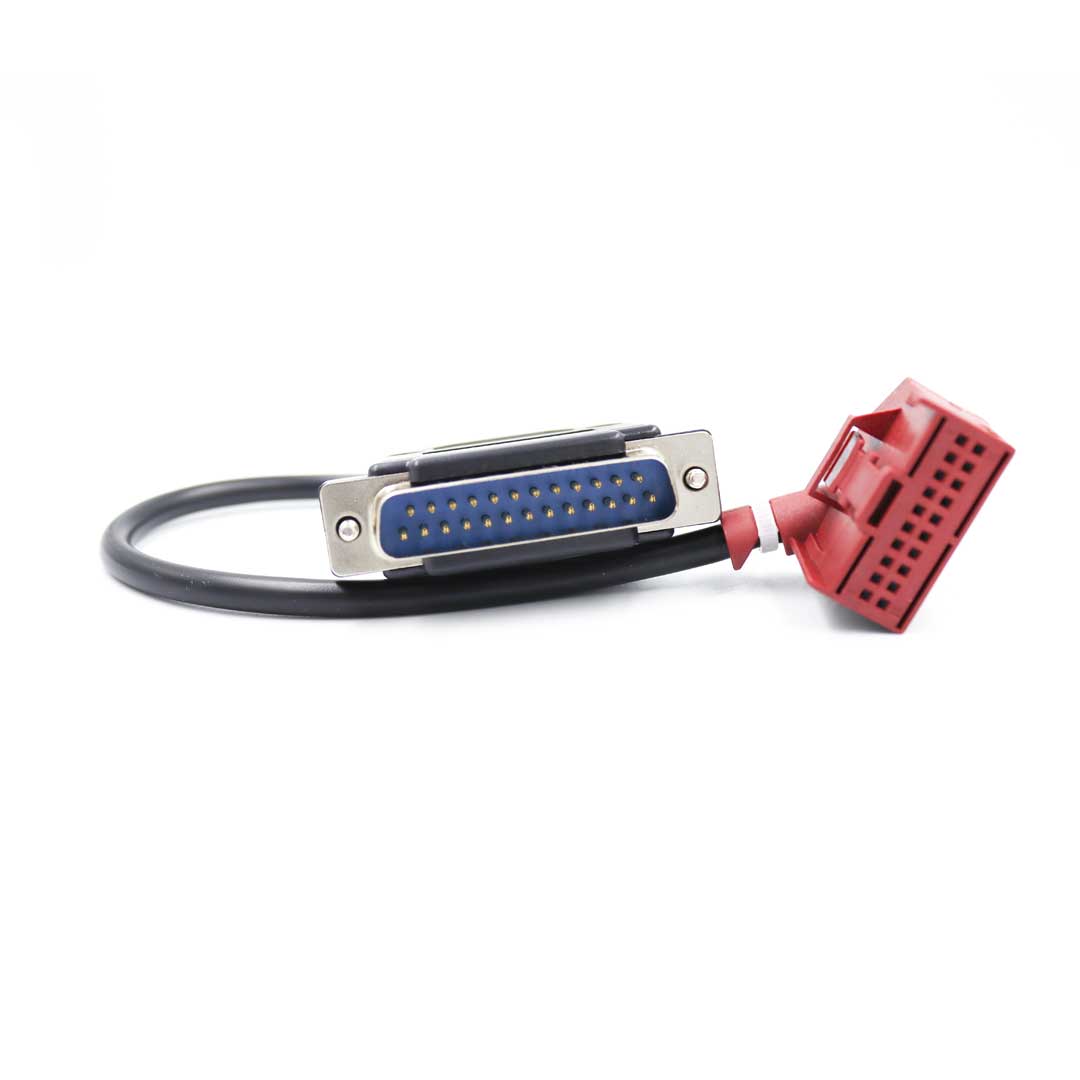

The VVDI PROG dedicated programming cable connector here is only for programming the emulator board, not for original J518 PCB board.
so if you have a car which need replace the J518 module with this emulator, you need read out the data in the MCU by soldering wire or other methods, then write the data into the emulator MCU via this Dedicated cable connector.

Please note:
1.Only need to write EEprom data, no need write other data like flash.etc.

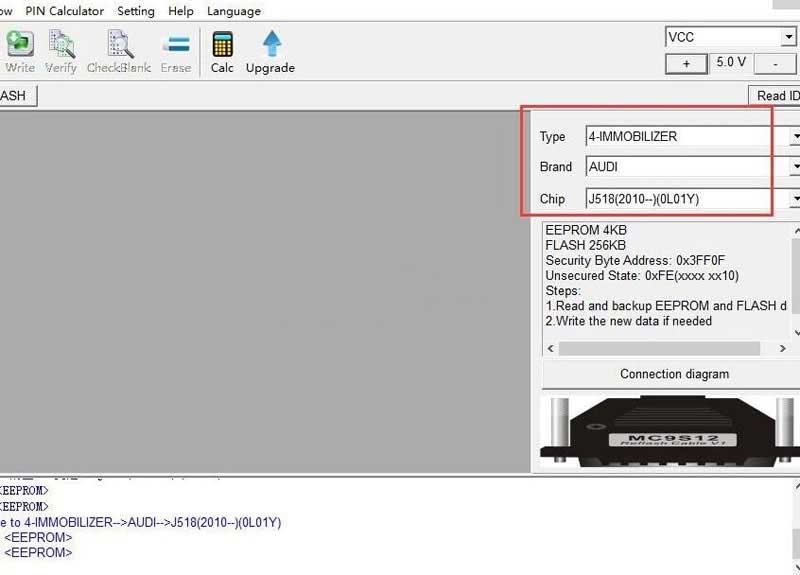

2.Please choose only the "j518(2010-)0L01Y"
in VVDI Prog software, no matter your car model before 2010 or after.
vvdi prog j518(2010-)0L01Y

Change steps:

1. Read out the EEPROM data from the original J518 module of your car (the emulator was already with flash data)
2. Write the EEPROM data you got in Step 1 into the emulator (if the original J518 MCU mask is 0L01Y, write the EEPROM data you got from step1 into the emulator directly;
or if the MCU mask of the original J518 is 1L59W/3L40K, you need to send EEPROM data to an expert to transfer EEPROM data when you write into the emulator directly. We don't provide the service)
the J518 replacement PCB

Free download J518 Flash that is in the emulator

Fitments:

  • Audi Q7
  • Audi A6
  • Audi C6
Brand Model From Year To Year
Audi A6
Audi Q7
